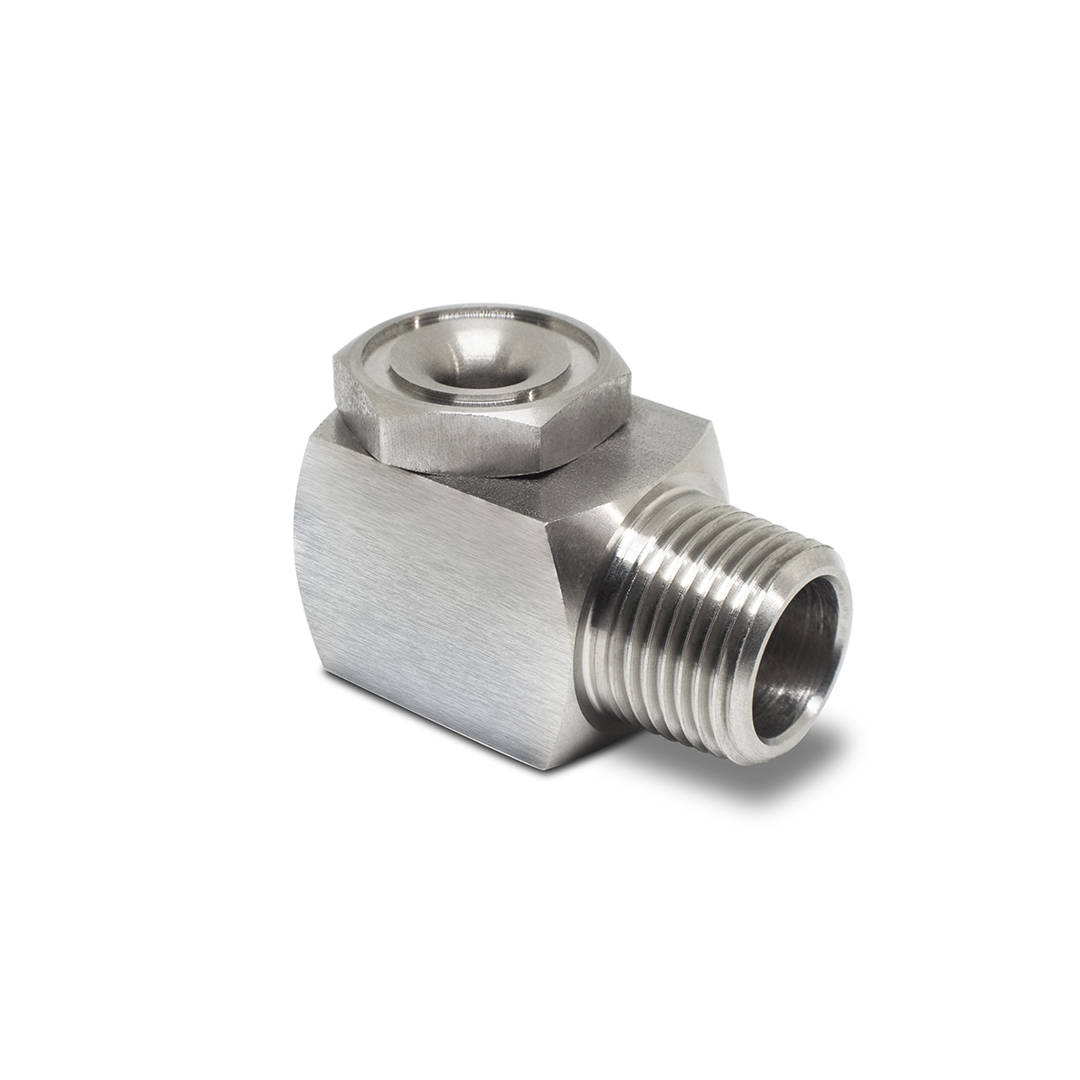

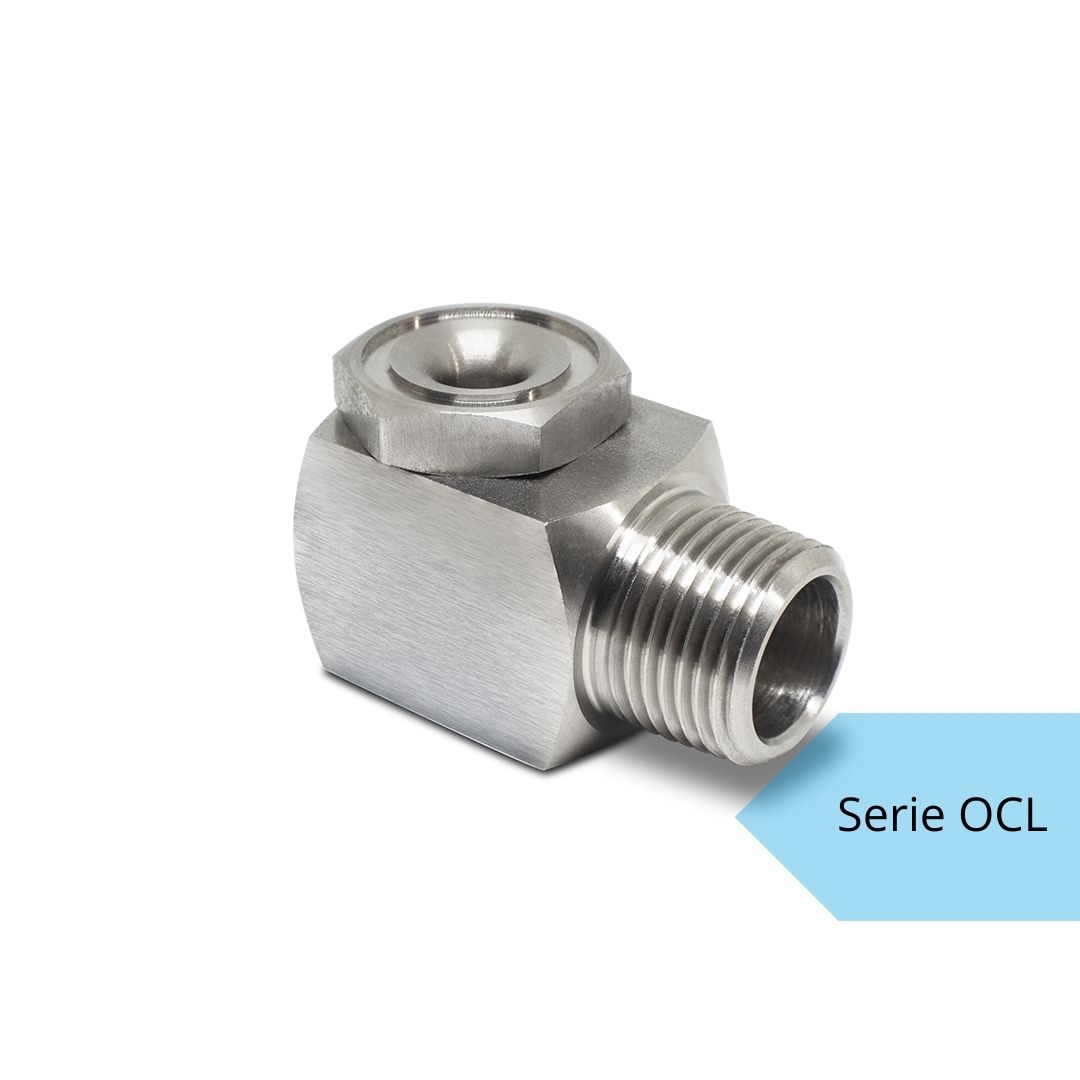

Tangential-flow full cone nozzles – OCL Series
Tangential full-cone, 90° from feed direction. Non-clogging design. Swirl-free jet, with big sized droplets.

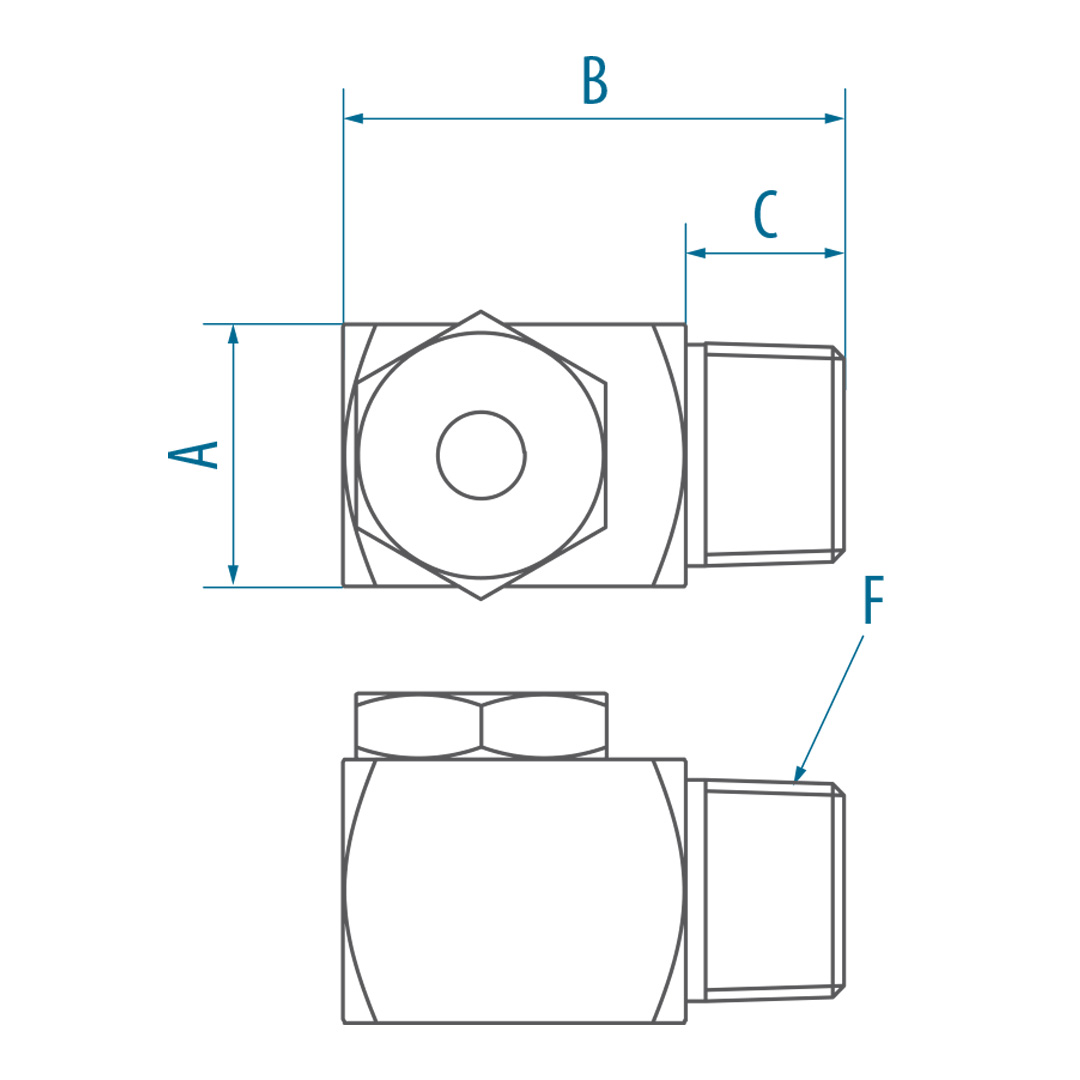

| Thread code | ||||
| Dim. | Y32 | Y33 | ||
| F | 1/4″ | 3/8″ | ||
| A | 20 | 20 | ||
| B | 38 | 38 | ||
| C | 12 | 12 | ||
| ANGLE | Material | Thread | FLOW CODE | Operating curve | |||||||||||||||
| 02 | 04 | 06 | 08 | Y32 | Y33 | ||||||||||||||
| AISI 316 | AISI 303 | Brass | PVC | 1/4″ BSPT | 3/8″ BSPT | Flow-rate [l/min] discharged at pressure [bar(g)] | |||||||||||||
| 0,5 | 0,7 | 1 | 1,5 | 2 | 2,5 | 3 | 5 | ||||||||||||
| 90° | x | x | x | x | x | – | 418 | 2,00 | 2,37 | 2,83 | 3,46 | 4,00 | 4,47 | 4,90 | 6,32 | ||||
| x | x | x | x | x | – | 429 | 2,50 | 2,96 | 3,54 | 4,33 | 5,00 | 5,59 | 6,12 | 7,91 | |||||
| x | x | x | x | x | – | 441 | 3,15 | 3,73 | 4,45 | 5,46 | 6,30 | 7,04 | 7,72 | 10,0 | |||||
| x | x | x | x | x | – | 453 | 4,00 | 4,73 | 5,66 | 6,93 | 8,00 | 8,94 | 9,80 | 12,6 | |||||
| x | x | x | x | x | – | 464 | 5,00 | 5,92 | 7,07 | 8,66 | 10,0 | 11,2 | 12,2 | 15,8 | |||||
| x | x | x | x | x | – | 475 | 6,25 | 7,40 | 8,84 | 10,8 | 12,5 | 14,0 | 15,3 | 19,8 | |||||
| x | x | x | x | – | x | 488 | 8,00 | 9,47 | 11,3 | 13,9 | 16,0 | 17,9 | 19,6 | 25,3 | |||||
| x | x | x | x | – | x | 499 | 10,0 | 11,8 | 14,1 | 17,3 | 20,0 | 22,4 | 24,5 | 31,6 | |||||
| x | x | x | x | – | x | 510 | 12,5 | 14,8 | 17,7 | 21,7 | 25,0 | 28,0 | 30,6 | 39,5 | |||||
| x | x | x | x | – | x | 522 | 16,0 | 18,9 | 22,6 | 27,7 | 32,0 | 35,8 | 39,2 | 50,6 | |||||
| x | x | x | x | – | x | 534 | 20,0 | 23,7 | 28,3 | 34,6 | 40,0 | 44,7 | 49,0 | 63,2 | |||||
Tangential-flow full cone nozzles
