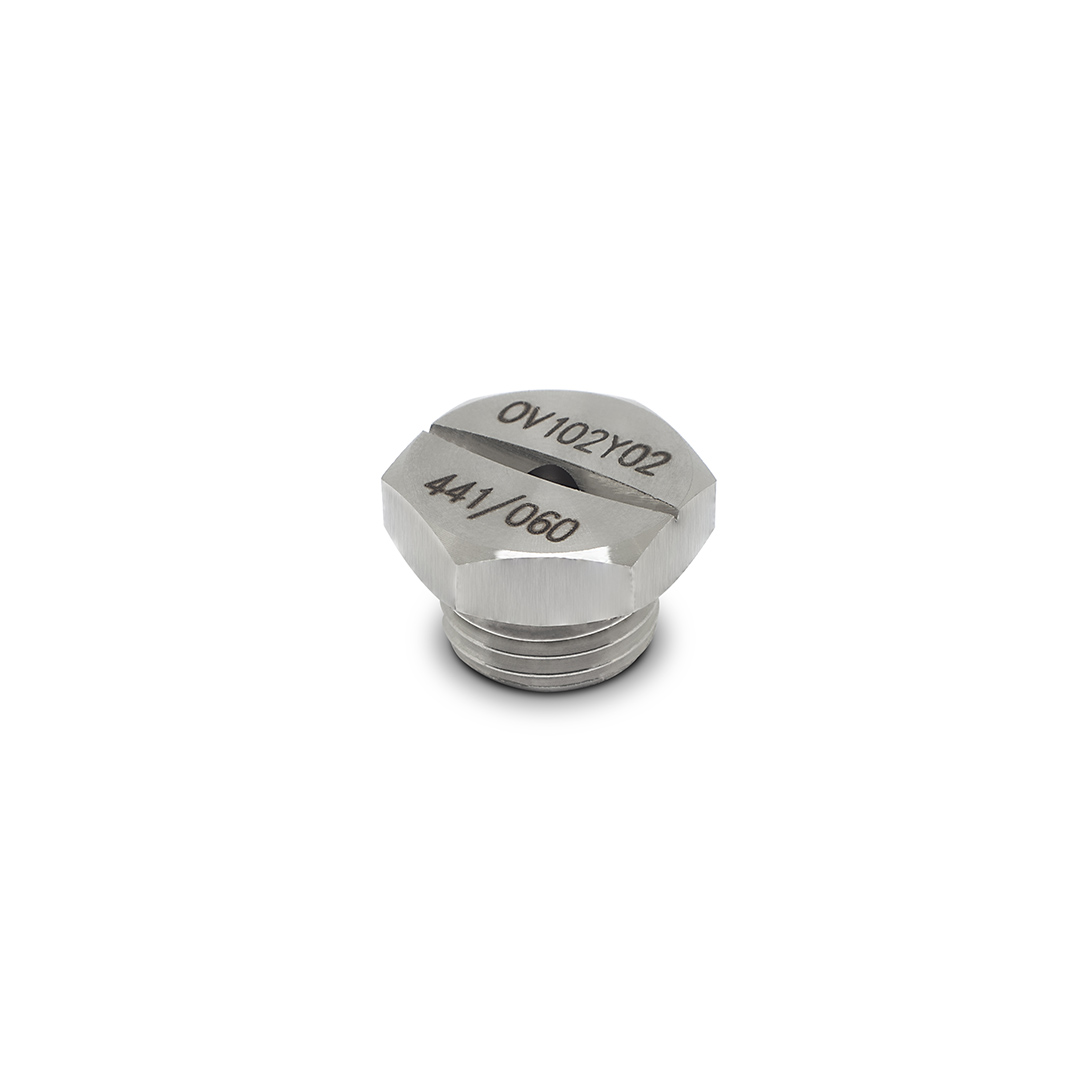

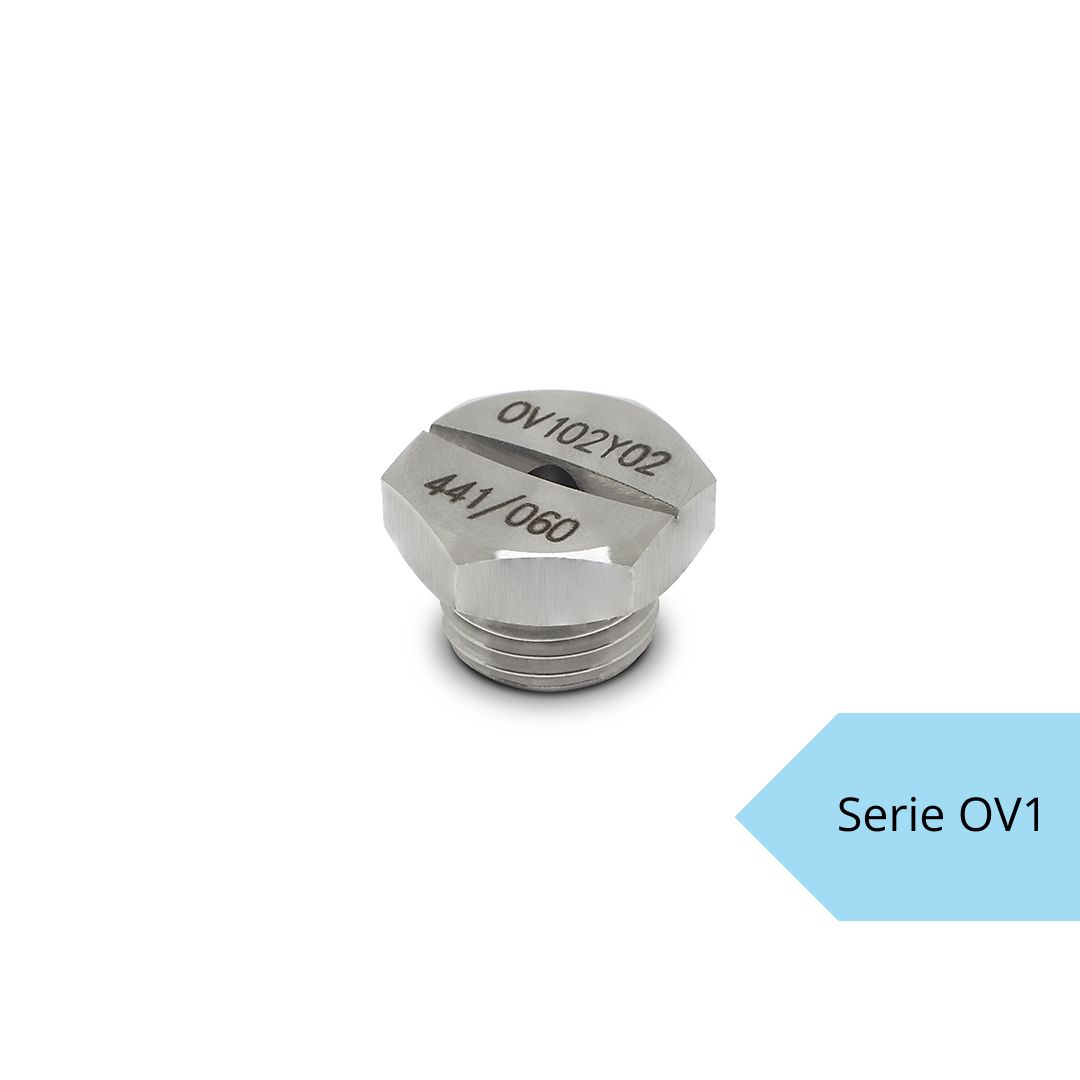

Ugello spruzzatore Serie OV1
Ugello spruzzatore OV1Ugelli spruzzatori OV1 - Scheda tecnica

Vee-jet nozzles

Vee-jet nozzles – OV1 Series
Compact design Axial-feed vee-jet nozzles with wide range of configurations. Wide range of flows and spray angles.

SKU: OV1-1 Category: Tags: , , , , , , ,

Description

OV1 Series – Vee-jet nozzles

  • Compact design
  • Very high impact force
  • Vee-jet with wide range of configurations
  • The jet projection has tapered ends
  • No internal components, obstruction-proof
  • Wide range of flows and spray angles
  • Available with AISI 316 quick-clamp connection

Application


Technical data sheet

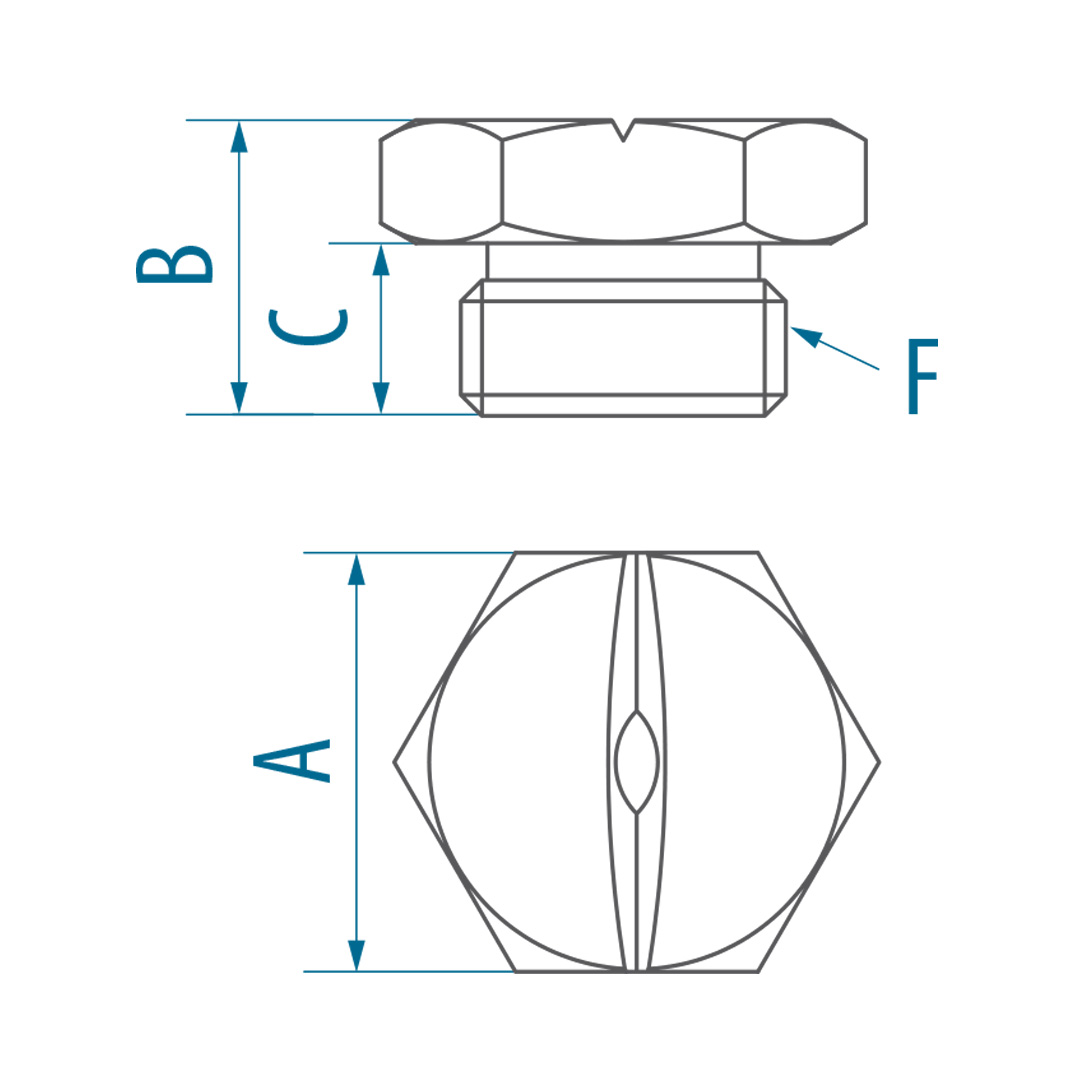

DIMENSIONS

 Thread code
Dim.Y02Y04
F1/4″1/2″
A1724
B1215
C79



OPERATIVE DATA



ANGLE Material Thread FLOW
CODE		 Operating curve
 0206 Y02Y04
 AISI
316		Brass 1/4″
BSP		1/2″
BSP		  Flow-rate [l/min] discharged at pressure [bar(g)]
    0,511,5235710

25° xx x– 383 1,001,411,732,002,453,163,744,47
 xx x– 394 1,251,772,172,503,063,954,685,60
 xx x– 406 1,602,262,773,203,925,065,997,16
 xx x– 418 2,002,833,464,004,906,327,488,94
 xx x– 429 2,503,544,335,006,127,919,3511,2
 xx x– 453 4,005,666,938,009,8012,615,017,9
 xx x– 475 6,258,8410,812,515,319,823,428,0
 xx xx 499 10,014,117,320,024,531,637,444,7
 xx –x 522 16,022,627,732,039,250,659,971,6
 xx –x 545 25,035,443,350,061,279,193,5112

ANGLE Material Thread FLOW
CODE		 Operating curve
 0206 Y02Y04
 AISI
316		Brass 1/4″
BSP		1/2″
BSP		  Flow-rate [l/min] discharged at pressure [bar(g)]
    0,511,5235710

45° xx x– 383 1,001,411,732,002,453,163,744,47
 xx x– 406 1,602,262,773,203,925,065,997,16
 xx x– 418 2,002,833,464,004,906,327,488,94
 xx x– 429 2,503,544,335,006,127,919,3511,2
 xx x– 441 3,154,455,466,307,729,9611,814,1
 xx x– 453 4,005,666,938,009,8012,615,017,9
 xx x– 464 5,007,078,6610,012,215,818,722,4
 xx x– 475 6,258,8410,812,515,319,823,428,0
 xx x– 488 8,0011,313,916,019,625,329,935,8
 xx xx 499 10,014,117,320,024,531,637,444,7
 xx –x 510 12,517,721,725,030,639,546,855,9
 xx –x 522 16,022,627,732,039,250,659,971,6
 xx –x 534 20,028,334,640,049,063,274,889,4
 xx –x 545 25,035,443,350,061,279,193,5112
 xx –x 557 31,544,554,663,077,299,6118141

ANGLE Material Thread FLOW
CODE		 Operating curve
 0206 Y02Y04
 AISI
316		Brass 1/4″
BSP		1/2″
BSP		  Flow-rate [l/min] discharged at pressure [bar(g)]
    0,511,5235710

60° xx x– 372 0,801,131,391,601,962,532,993,58
 xx x– 383 1,001,411,732,002,453,163,744,47
 xx x– 394 1,251,772,172,503,063,954,685,60
 xx x– 406 1,602,262,773,203,925,065,997,16
 xx x– 418 2,002,833,464,004,906,327,488,94
 xx x– 429 2,503,544,335,006,127,919,3511,2
 xx x– 441 3,154,455,466,307,729,9611,814,1
 xx x– 453 4,005,666,938,009,8012,615,017,9
 xx x– 464 5,007,078,6610,012,215,818,722,4
 xx x– 475 6,258,8410,812,515,319,823,428,0
 xx x– 488 8,0011,313,916,019,625,329,935,8
 xx xx 499 10,014,117,320,024,531,637,444,7
 xx xx 510 12,517,721,725,030,639,546,855,9
 xx –x 522 16,022,627,732,039,250,659,971,6
 xx –x 534 20,028,334,640,049,063,274,889,4
 xx –x 545 25,035,443,350,061,279,193,5112
 xx –x 557 31,544,554,663,077,299,6118141

ANGLE Material Thread FLOW
CODE		 Operating curve
 0206 Y02Y04
 AISI
316		Brass 1/4″
BSP		1/2″
BSP		  Flow-rate [l/min] discharged at pressure [bar(g)]
    0,511,5235710

90° xx x– 372 0,801,131,391,601,962,532,993,58
 xx x– 383 1,001,411,732,002,453,163,744,47
 xx x– 394 1,251,772,172,503,063,954,685,60
 xx x– 406 1,602,262,773,203,925,065,997,16
 xx x– 418 2,002,833,464,004,906,327,488,94
 xx x– 429 2,503,544,335,006,127,919,3511,2
 xx x– 441 3,154,455,466,307,729,9611,814,1
 xx x– 453 4,005,666,938,009,8012,615,017,9
 xx x– 464 5,007,078,6610,012,215,818,722,4
 xx x– 475 6,258,8410,812,515,319,823,428,0
 xx x– 488 8,0011,313,916,019,625,329,935,8
 xx xx 499 10,014,117,320,024,531,637,444,7
 xx xx 510 12,517,721,725,030,639,546,855,9
 xx –x 522 16,022,627,732,039,250,659,971,6
 xx –x 534 20,028,334,640,049,063,274,889,4
 xx –x 545 25,035,443,350,061,279,193,5112
 xx –x 557 31,544,554,663,077,299,6118141

ANGLE Material Thread FLOW
CODE		 Operating curve
 0206 Y02Y04
 AISI
316		Brass 1/4″
BSP		1/2″
BSP		  Flow-rate [l/min] discharged at pressure [bar(g)]
    0,511,5235710

120° xx x– 372 0,801,131,391,601,962,532,993,58
 xx x– 383 1,001,411,732,002,453,163,744,47
 xx x– 394 1,251,772,172,503,063,954,685,60
 xx x– 406 1,602,262,773,203,925,065,997,16
 xx x– 418 2,002,833,464,004,906,327,488,94
 xx x– 429 2,503,544,335,006,127,919,3511,2
 xx x– 441 3,154,455,466,307,729,9611,814,1
 xx x– 453 4,005,666,938,009,8012,615,017,9
 xx x– 464 5,007,078,6610,012,215,818,722,4
 xx x– 475 6,258,8410,812,515,319,823,428,0
 xx x– 488 8,0011,313,916,019,625,329,935,8
 xx xx 499 10,014,117,320,024,531,637,444,7
 xx –x 510 12,517,721,725,030,639,546,855,9
 xx –x 522 16,022,627,732,039,250,659,971,6
 xx –x 534 20,028,334,640,049,063,274,889,4
