Deflected flat jet nozzles

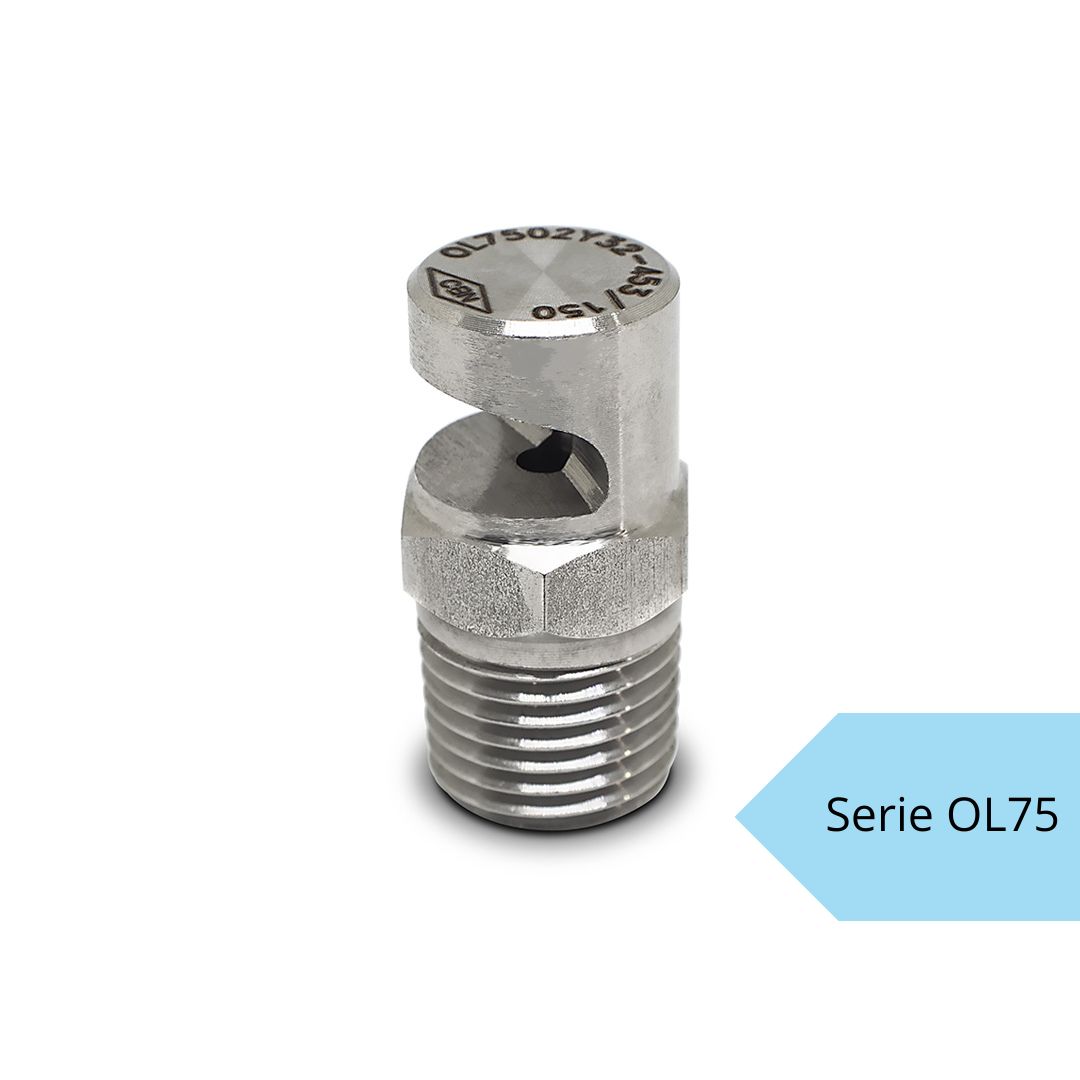

Deflected flat jet nozzles – OL75 Series
75° deflected flat jet spary nozzles. Very wide jet coverage with medium impact. Uniform jet distribution with medium sized droplets.

SKU: OL75-1 Category: Spray nozzles Tags: Materials cooling, Water mist fire-fighting

Description

Description

Deflected flat jet nozzles – OL75 series

75° deflected flat jet
Very wide jet coverage with medium impact
Uniform jet distribution with medium sized droplets
Large bores to reduce clogging

Data sheet

Applications

Technical data sheet

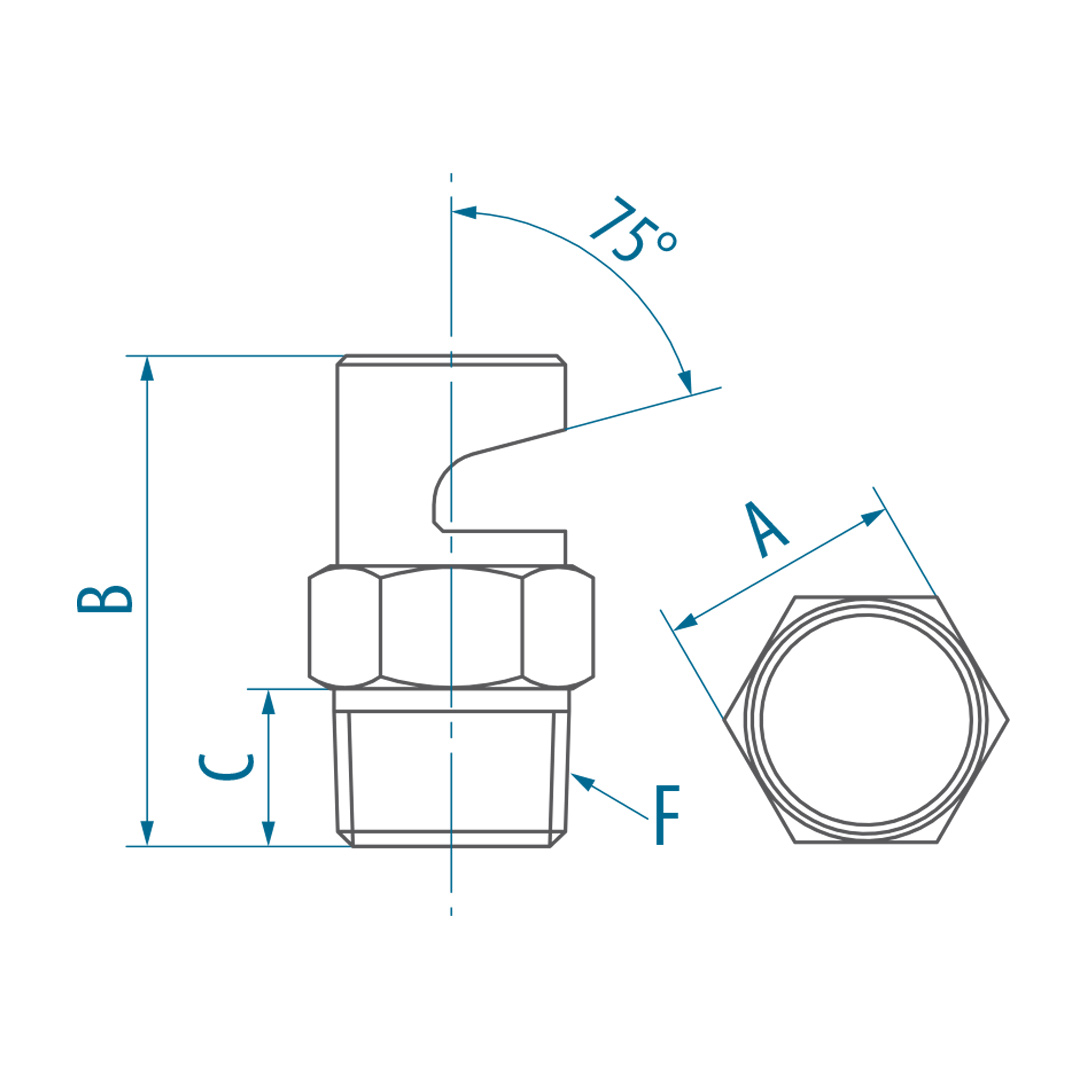

DIMENSIONS

		Thread code
Dim.		Y32
F		1/4″
A		14
B		28
C		9

OPERATIVE DATA

ANGLE	Material			Thread	FLOW CODE	Operating curve
	04	06	08	Y32		Operating curve
	AISI 303	Brass	PVC	1/4″ BSPT		Flow-rate [l/min] discharged at pressure [bar(g)]
	AISI 303	Brass	PVC	1/4″ BSPT		0,5	0,7	1	1,5	2	3	5	7

140°	x	x	x	x	383	1,00	1,18	1,41	1,73	2,00	2,45	3,16	3,74
	x	x	x	x	394	1,25	1,48	1,77	2,17	2,50	3,06	3,95	4,68
	x	x	x	x	406	1,60	1,89	2,26	2,77	3,20	3,92	5,06	5,99
	x	x	x	x	418	2,00	2,37	2,83	3,46	4,00	4,90	6,32	7,48
	x	x	x	x	429	2,50	2,96	3,54	4,33	5,00	6,12	7,91	9,35
	x	x	x	x	441	3,15	3,73	4,45	5,46	6,30	7,72	10,0	11,8
	x	x	x	x	453	4,00	4,73	5,66	6,93	8,00	9,80	12,6	15,0
	x	x	x	x	464	5,00	5,92	7,07	8,66	10,0	12,2	15,8	18,7
	x	x	x	x	475	6,25	7,40	8,84	10,8	12,5	15,3	19,8	23,4
	x	x	x	x	488	8,00	9,50	11,3	13,9	16,0	19,6	25,3	29,9
