Tangential-flow hollow cone nozzles

Tangential-flow hollow cone nozzles – CLWFR Series
Tangential-flow hollow cone nozzles. Integrated with AISI 316 quick-clamp. Max Temperature 100°C.

SKU: CLWFR-1 Category: Tags: , , , ,

Description

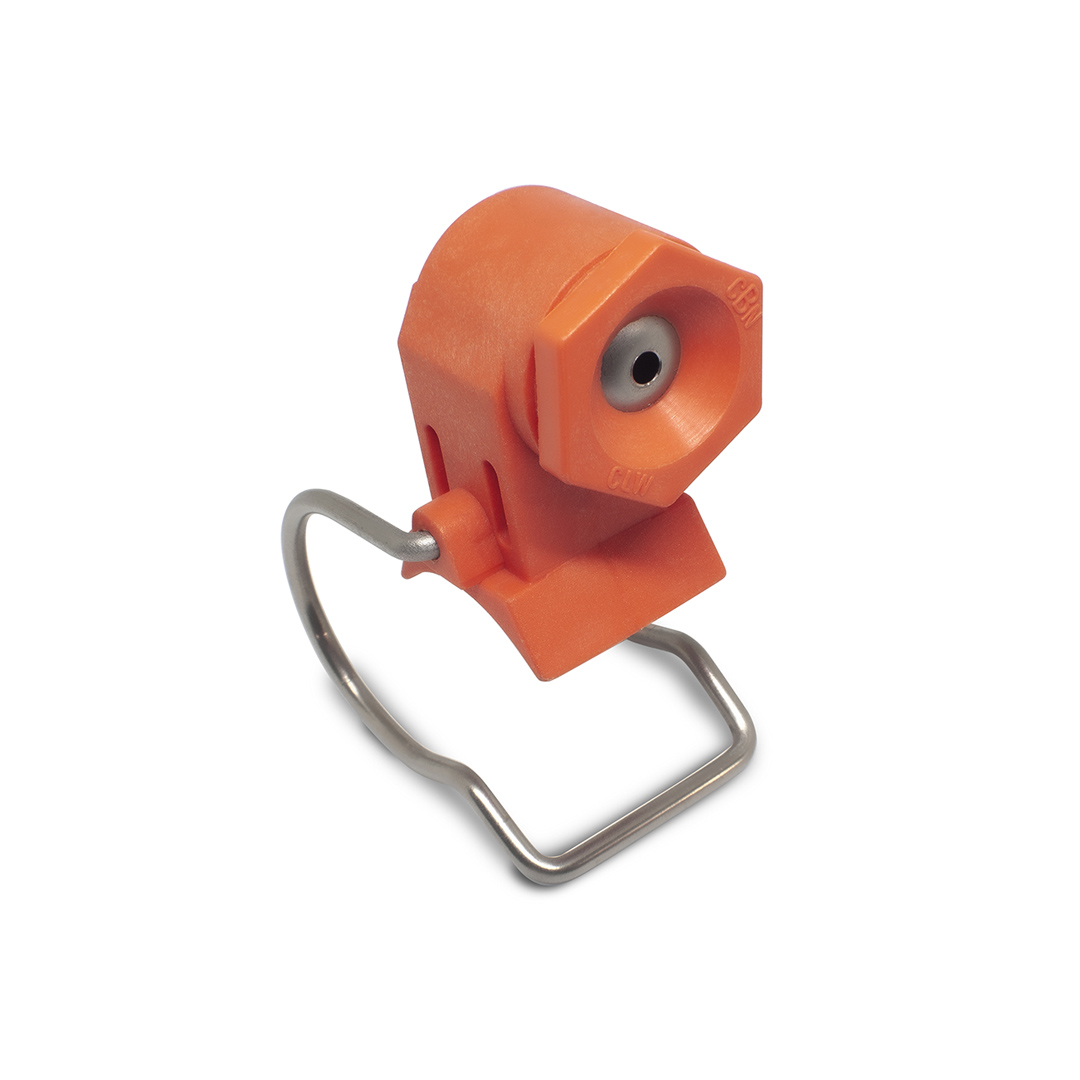

CLWFR series tangential-flow hollow cone nozzles



  • Tangential flow
  • Non-clogging design
  • Integrated AISI 316 quick-clamp
  • Uniform hollow cone jet even at low pressure
  • AISI 316 stainless steel insert covering the hole and extending life
  • Large bores to reduce clogging
  • Commercial and easy to replace O-Ring
  • Max Temperature 100°C
  • Max pressure 5 bar(g)
  • Studied for water-based fluids
  • Compatible with weak acids and bases

Application


Technical data sheet

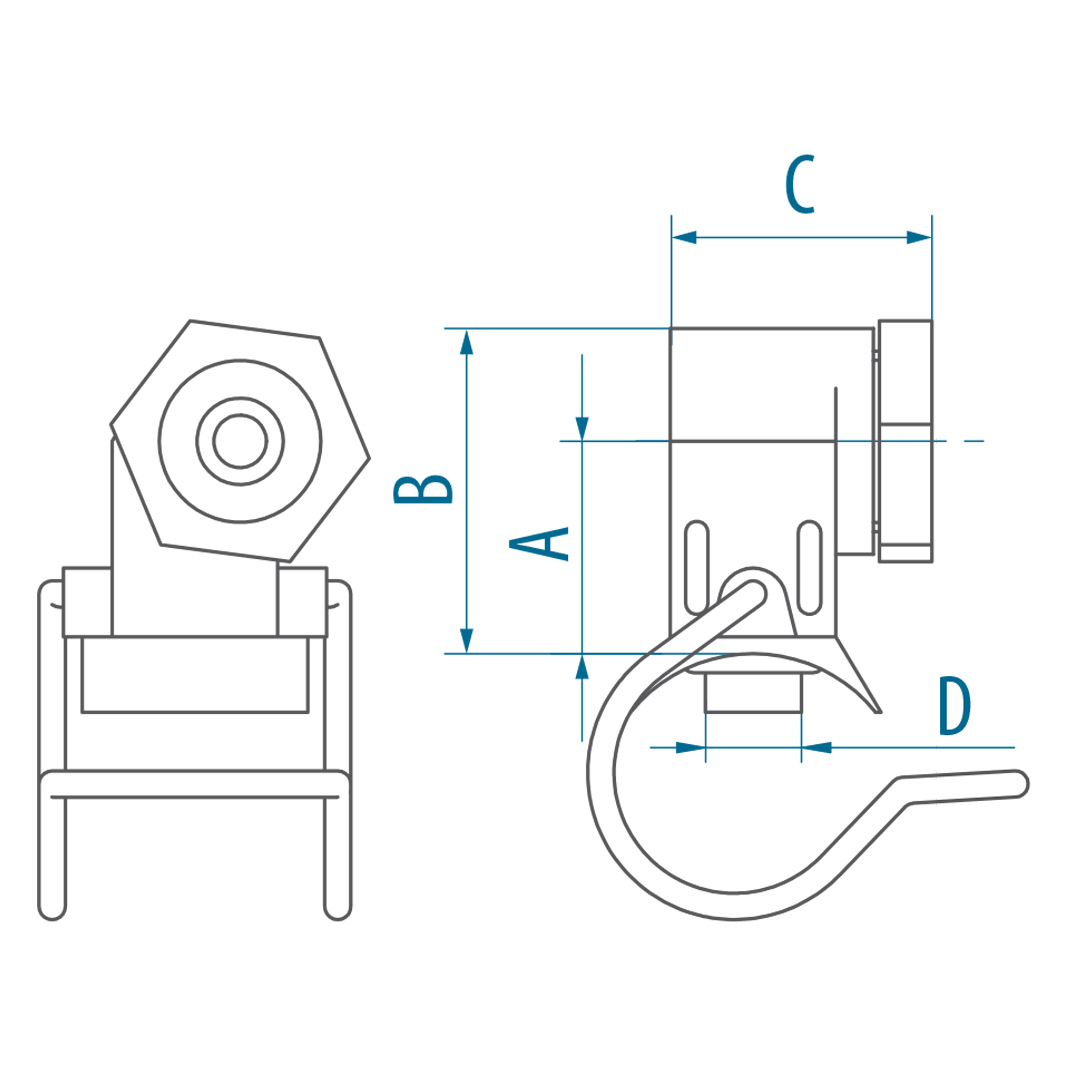

DIMENSIONS

 Clamp
Clamp codeW06W07W08W09
NPS11 1/41 1/22
A30303333
B43434747
C36363636
D12,912,913,913,9



OPERATIVE DATA



ANGLE Mat. Clamp FLOW
CODE		 Operating curve
 33 W06W07W08W09
 PP-GF NPS
1		NPS
1 1/4		NPS
1 1/2		NPS
2		  Flow-rate [l/min] discharged at pressure [bar(g)]
    0,50,711,522,535

90° x xx–– 398 1,351,601,912,342,703,023.314,27
 x xx–– 418 2,002,372,833,464,004,474,906,32
 x xx–– 429 2,502,963,544,335,005,596,127,91
 x xx–– 441 3,153,734,455,466,307,047,7210,0
 x xx–– 453 4,004,735,666,938,008,949,8012,6
 x xxxx 464 5,005,927,078,6610,011,212,215,8
 x xxxx 475 6,257,408,8410,812,514,015,319,8
 x xxxx 488 8,009,4711,313,916,017,919,625,3
 x ––xx 499 10,011,814,117,320,022,424,531,6
